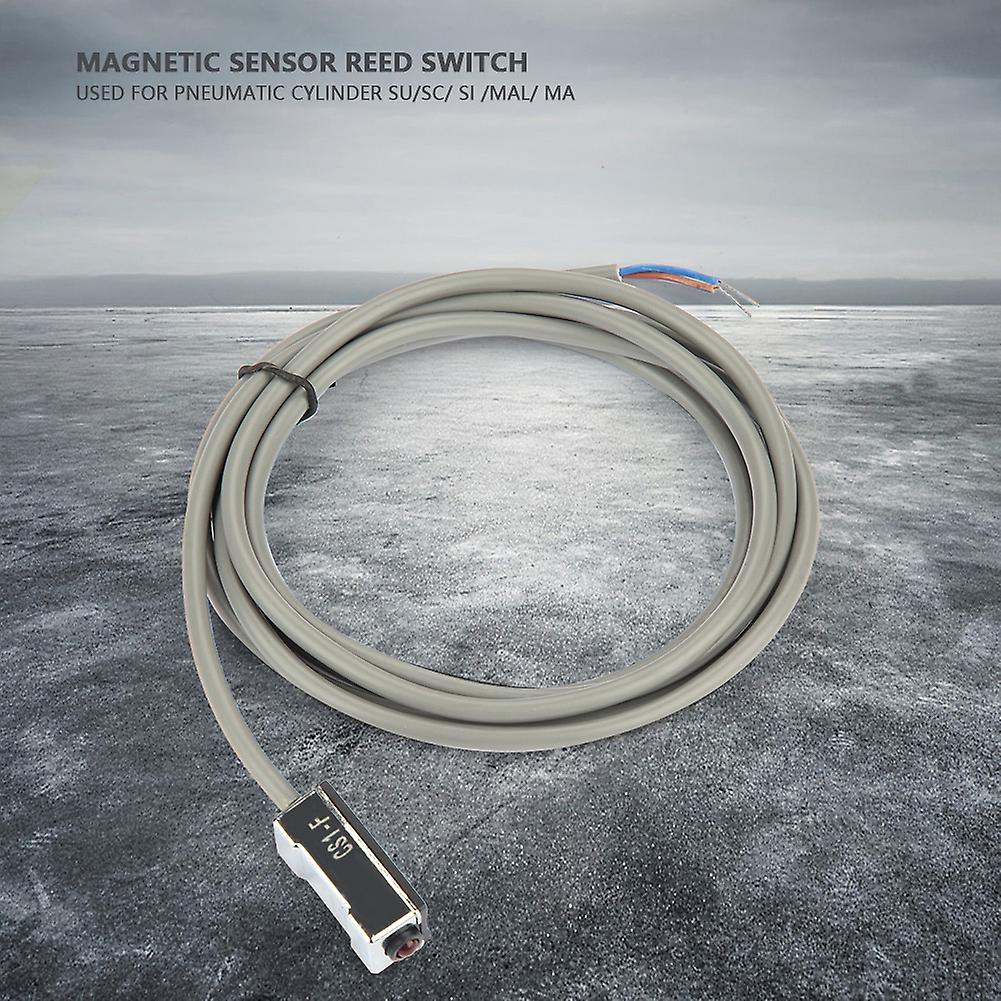

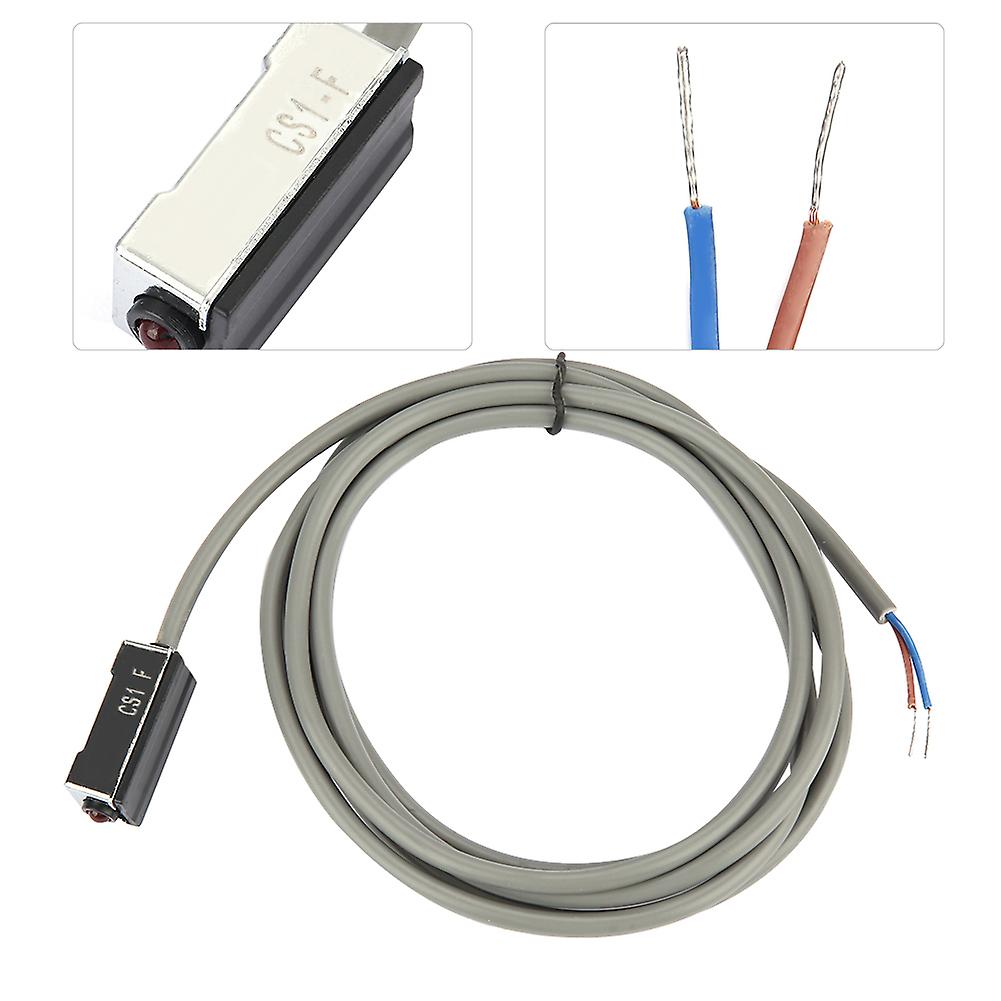

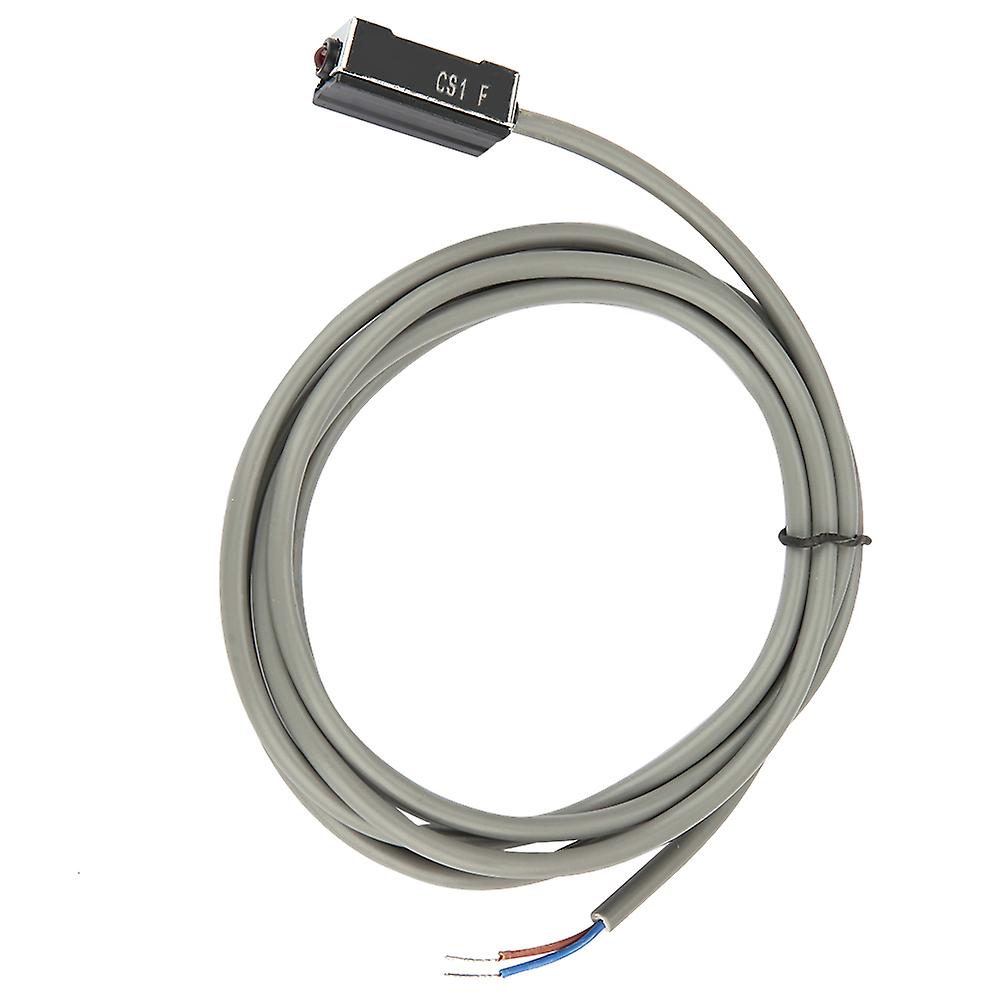

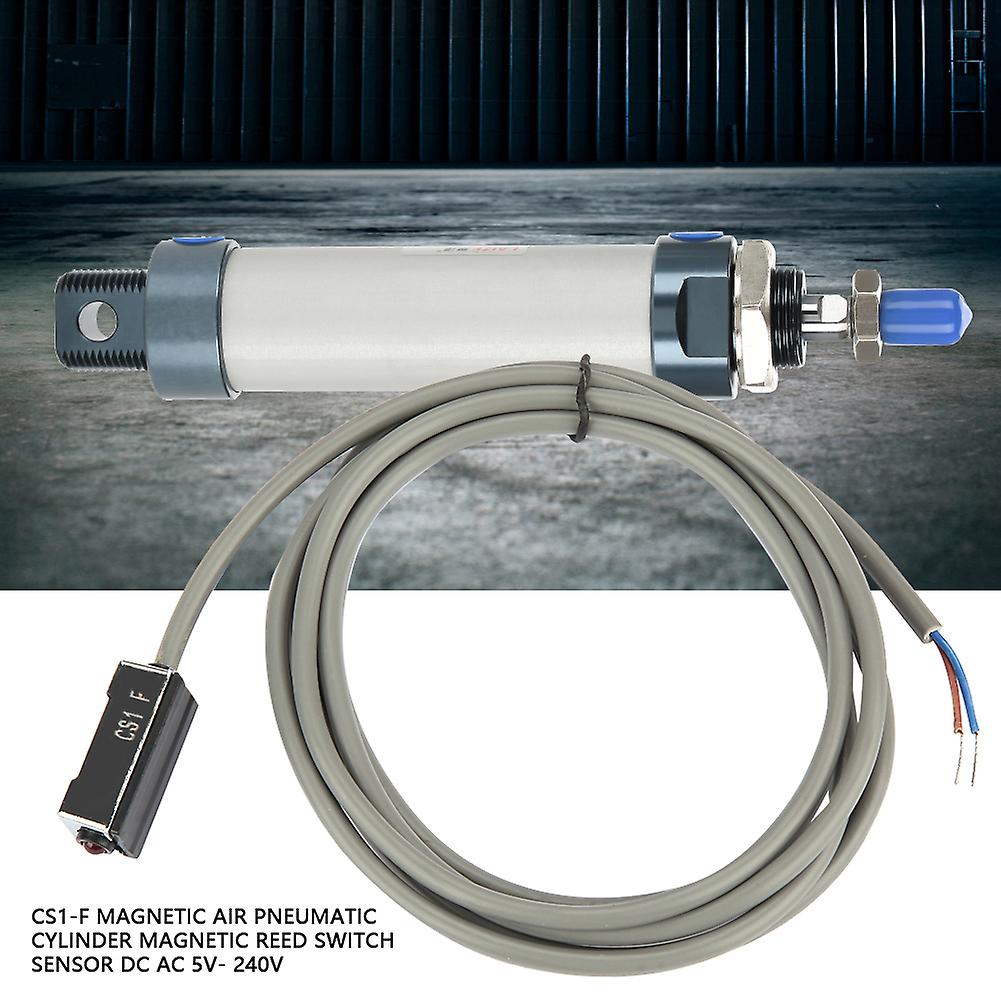

Cs1-f Magnetic Air Pneumatic Cylinder Magnetic Reed Switch Sensor Dc Ac 5v- 240v

Description

1100% brand new and high quality 2Used for Pneumatic Cylinder SU/SC/ SI /MAL/ MA 3This magnetic sensor switch has strong overload capacity 4High sensitivity and stable performance 5Magnetic sensor reed switch is easy to wire and use Features: 100% brand new and high quality Used for Pneumatic Cylinder SU/SC/ SI /MAL/ MA This magnetic sensor switchhas strong overload capacity High sensitivity and stable performance Magnetic sensor reed switchis easy to wire and use Specification: Model:CS1-F Switch selection: SPST normally open type Induction switch type: with node reed type Operating voltage: 5-240v DC/AC MAX switching current: 100mA MAX capacity: 10W Internal consumption current: none Residual pressure drop: 2.5v MAX Leakage current: no Indicator light: red LED MAX switching frequency: 200Hz Impact resistance: 30G Protection back: none Sensitive induction， strong overload capacity Weight: Approx.35g/1.3oz Package list: 1 x Magnetic Sensor Reed Switch

• Brand: Gegong
• Category: Forestry & Logging

• Fruugo ID: 127922273-268716658
• EAN: 918924617917
• Sold by: Shenzhen Qimo Network Technology
